If you are looking for high filter precision and durable filter elements, we recommend a kind of non-woven fabric filter elements for you.

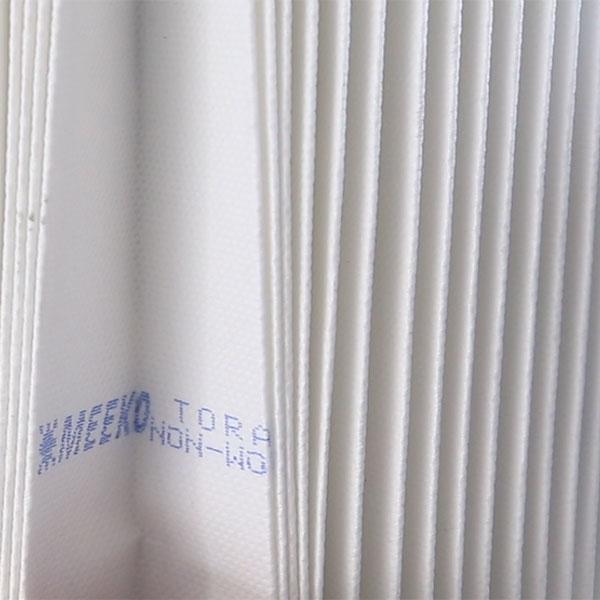

TORAY polyester filter material (All TORAY materials have anti-counterfeit labels) is non-woven fabric made of 100% polyester filament with features of high strength and high density. Filter elements made of this material have small pore size and filter precision of 3-4μm. Compared with other filter elements, TORAY non-woven fabric filter elements have higher filter precision and better air permeability, and their dust removal efficiency can reach 99.9%. According to your practical using conditions, we can also make some processing treatments for TORAY non-woven fabric such as water and oil proof and antistatic treatments to meet your various requirements.

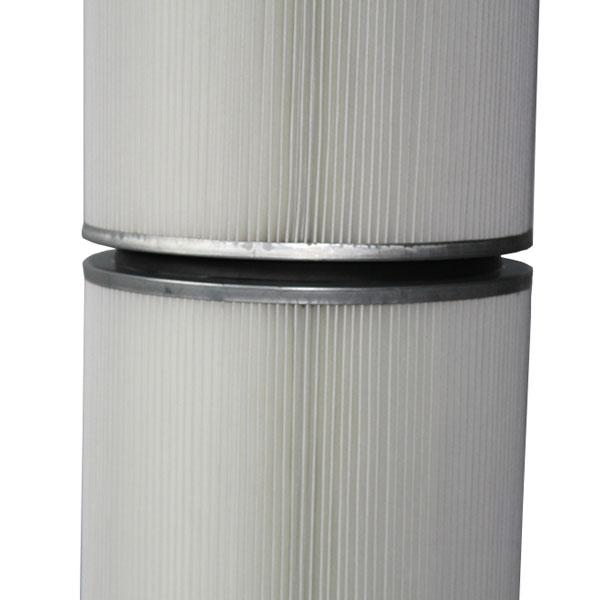

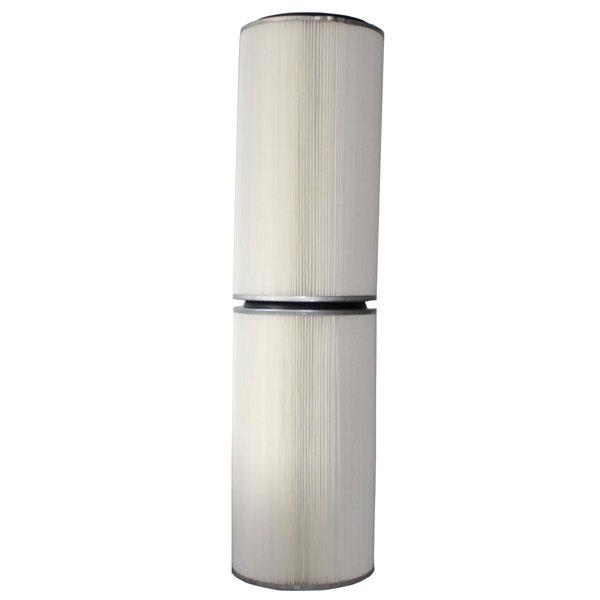

Xin Huan Bao fiter elements adopt TORAY non-woven fabric and are suitable for powder filtration in environmental dust removal equipment, coating equipment, powder spraying equipment, woodworking equipment and blasting equipment. They can be used for the powder recovery of production line manufacturing such as steel plants, furniture and household appliances, boiler dust removal and cement plants.
|Size (O.D. × I.D.)||O.D. 325mm×I.D. 215mm (220mm), Accept nonstandard customization and sample orders|
|Size (Height)||600mm, 660mm, 900mm, 1200mm|
|Dirt holding capacity||260g/m2|
|Bearing back flushing pressure||5-6kg|
|Powder recovery rate||99.8%|
|Collecting efficiency/Filter precision||99.8%/4.5-5μm 99.1%/2-4μm 92.5%/1-2μm|

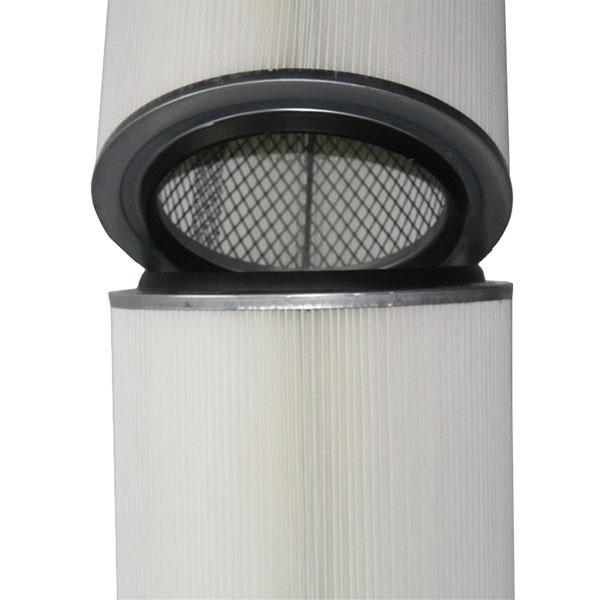

|Top and bottom end cap||Zinc electroplating|

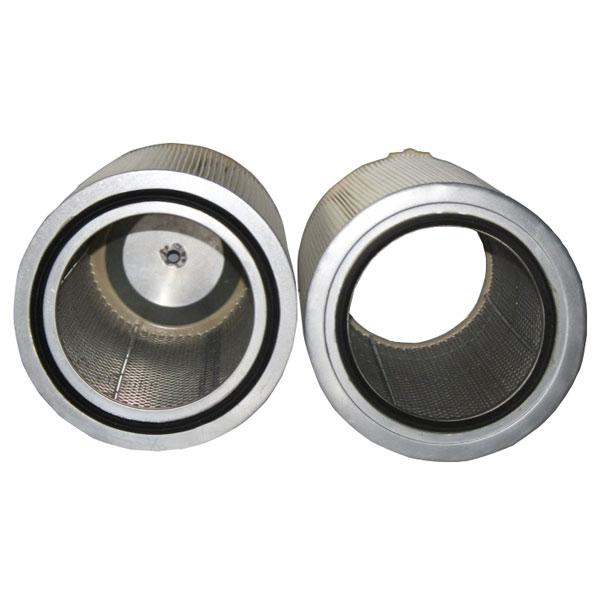

|Inside frame diamond mesh||Zinc electroplating|
|Air resistance||2.95mbar When airflow is 70cm/s|
|Tensile strength||Kgt/5cm MD126.5 CD73|
You can directly choose from the above displayed TORAY Nonwoven fabric filtration. We can also satisfy your any requirements for filter element size, surface treatment method and other aspects, and provide you with custom service for TORAY Nonwoven fabric filtration.

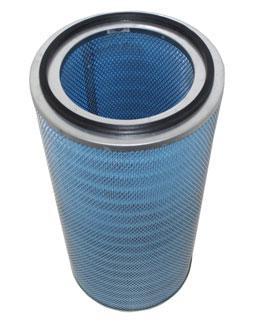

If you want to customize other types of filter elements such as spun bond polyester cartridges, cellulose filter cartridges and flame retardant fiber filtration, you can enter custom page, see custom instructions and provide us with necessary information.
