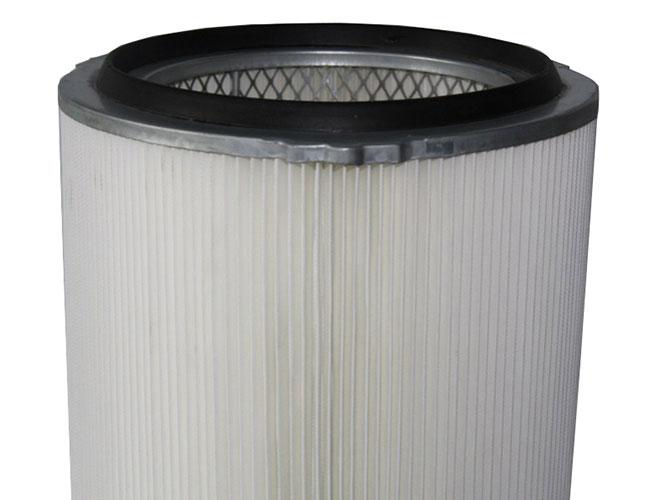

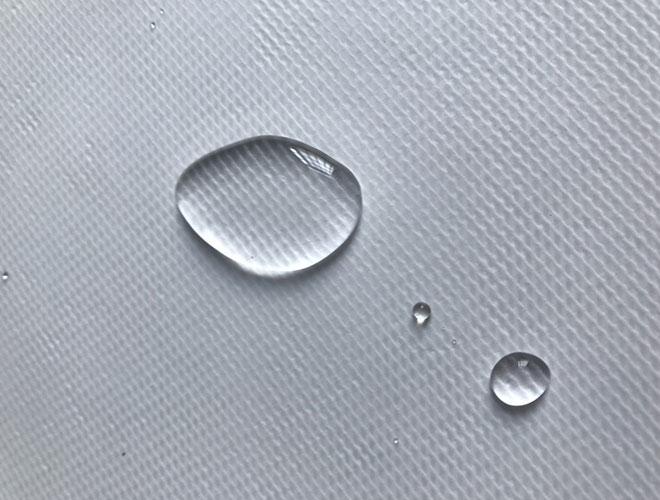

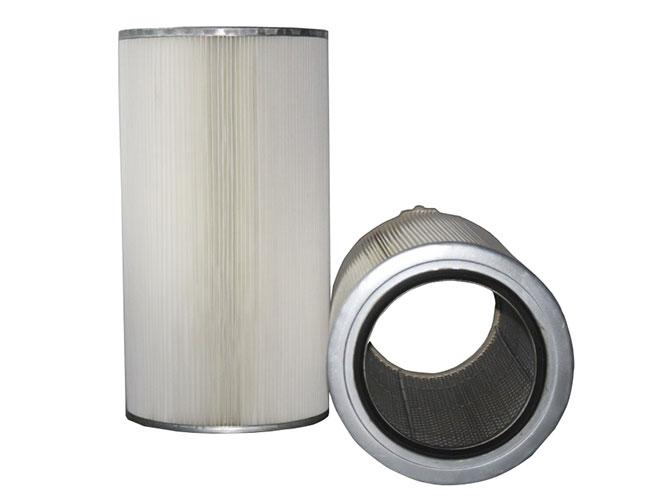

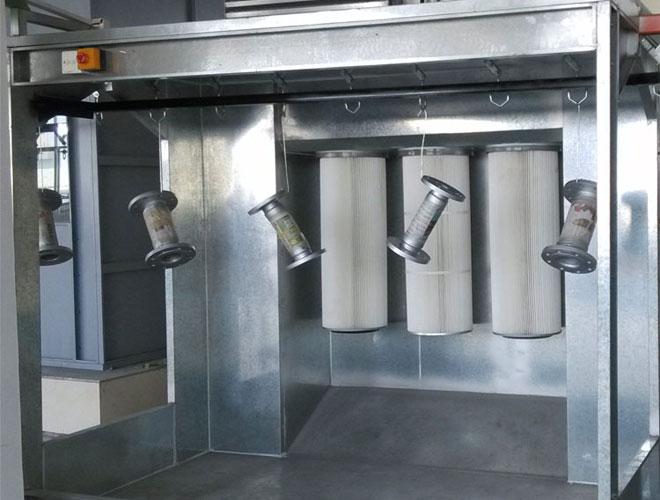

A layer of PTFE membrane is covered on the surface of laminated cartridge filter elements. PTFE membrane hardly adheres to any substance. It can effectively resist water and oil, and the filter precision can reach 0.3-0.5μm. Even if laminated filter elements adhere a little dirt, they can be cleaned by simple wiping with short downtime, which can save working time and improve working efficiency. Laminated non-woven filter elements are used for powder recovery in environmental dust removal equipment, coating equipment, powder spraying equipment, woodworking equipment, blasting equipment and polishing dust removal equipment.
|Size (O.D. × I.D.)||O.D. 325mm×I.D. 215mm (220mm), Accept nonstandard customization and sample orders|
|Size (Height)||600mm, 660mm, 900mm, 1200mm|
|Material||Laminated membrane PTFE polyester fiber|
|Dirt holding capacity||260g/m2|
|Bearing back flushing pressure||4-5kg|
|Powder recovery rate||98.2%|
|Top and bottom end cap||Zinc electroplating|
|Inside frame diamond mesh||Zinc electroplating|
You can directly choose from the above displayed laminated cartridge filter elements. If you have any specific demands for filter element size, surface treatment method and other aspects, please contact us in time and Xin Huan Bao will provide you with custom service for laminated cartridge filter elements.
If you want to customize other types of filter elements such as TORAY Nonwoven fabric filtration, stainless steel cartridge filter elements and filter bags, you can enter custom page, see custom instructions and provide us with necessary information.
